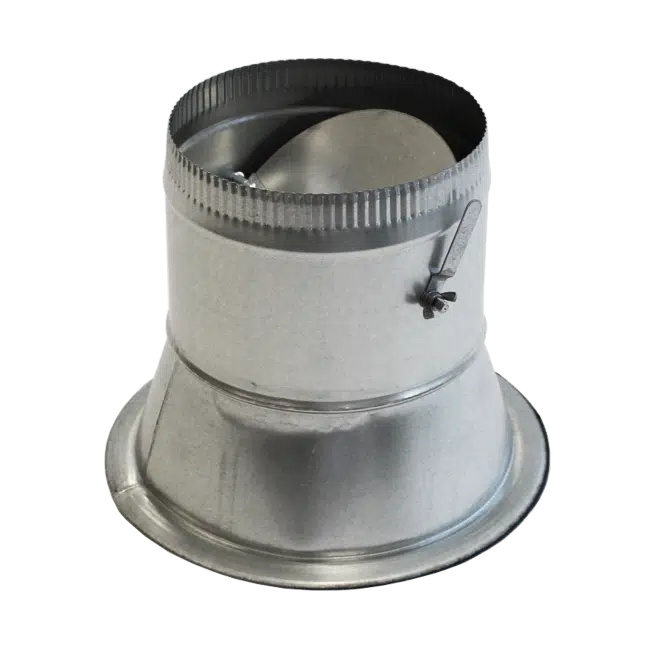

Economy Press-On Conical Taps with Damper
Description
Metal Zinc’s Economy Press On Conical Tap with Damper is used for low & medium pressure applications
Features
- Welded Seams for added strength and low leakage
- Pressure Rating - Designed per SMACNA 3rd Edition
Standard Construction
- Body and Collar - Formed using G60, 24-Gauge ASTM A-653 material
- 1/8’’x1’’ Two Sided Neoprene Gasket
- 1” flange
Optional Construction
- Damper blade with zero leak snap -in brushing
- G90 Galvanized
- Spin-in (-SI) version available
Product specifications
| Metal Zinc Part Number | Size A Inches | Bundle Quantity | Pallet Quantity |
|---|---|---|---|
| SF0775-VD | 4 | 30 | 210 |
| SF0785-VD | 6 | 16 | 112 |
| SF0795-VD | 8 | 12 | 84 |
| SF0805-VD | 10 | 10 | 70 |
| SF0810-VD | 12 | 8 | 56 |
| SF0845-VD | 14 | 5 | 35 |
| SF0823-VD | 16 | 5 | 35 |
