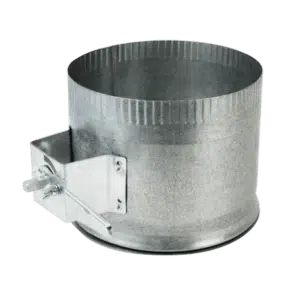

- Heavy Duty Spin-in Tap
- Economy Spin-in Tap with Damper
- Spin-in Tap No Damper
- Bellmouth Collars
- Heavy Duty Press On Conical Tap

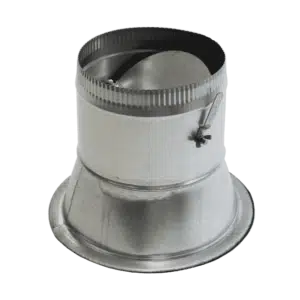

- Economy Press-On Conical Taps with Damper
- Press On Conical Tap No Damper
- HETO with Heavy Duty Damper
- HETO with Economy Volume Damper
- HETO No Damper
- STO with Heavy Duty Damper
- STO with Economy Volume Damper
- STO No Damper
- Heavy Duty Saddle Tap With Damper
- Economy Saddle Tap with Damper
- Saddle Tap No Damper
- Rectangle on Round Tap (Grill Tap)
- Heavy Duty Inline Damper
- Plenums, Filter Boxes, Racks, Bases and Transitions
- Access Doors
- Rails, Drives, Angles and Straps
- Boots, Boxes, Stands and Accessories
- Miscellaneous
Adjustable Elbows
Description
Metal Zinc’s adjustable elbows are used for low pressure applications and can be adjusted to any degree.
Features
- Meets SMACNA requirements (3rd Edition Section 3.29 Figure 3-4)
- Pressure rating (+/-2 water gauge)
- Welded seam for added strength and low leakage
- Packaged in trays for efficient field handling and keeping elbows enclosed for cleanliness
Standard Construction
- Manufactured using 26 and 30-gauge ASTM material
- Manufactured from one piece of sheet metal through 10”
Optional Construction
- 24-gauge galvanized steel
- Agion (antimicrobial coating
- Aluminum
- Galvanneal (paint grip)
- PCD
- Stainless steel 304 and 316
Product specifications
| Metal Zinc Part Number | Size A Inches | Gauge | Tray Quantity | Pallet Quantity |
|---|---|---|---|---|
| SME3-90 | 3 | 26 | 64 | 2048 |
| SME4-90 | 4 | 26 | 36 | 1152 |
| SME5-90 | 5 | 26 | 25 | 550 |
| SME6-90 | 6 | 26 | 16 | 320 |
| SME7-90 | 7 | 26 | 12 | 240 |
| SME8-90 | 8 | 26 | 9 | 180 |
| SME9-90 | 9 | 26 | 6 | 96 |
| SME10-90 | 10 | 26 | 5 | 80 |
| SME12-90 | 12 | 26 | 4 | 64 |
| SME14-90 | 14 | 26 | Made to Order | Made to Order |
| SME16-90 | 16 | 26 | Made to Order | Made to Order |
| SME3-90-30 | 3 | 30 | 64 | 2048 |
| SME4-90-30 | 4 | 30 | 36 | 1152 |
| SME5-90-30 | 5 | 30 | 25 | 550 |
| SME6-90-30 | 6 | 30 | 16 | 320 |
| SME7-90-30 | 7 | 30 | 12 | 240 |
| SME8-90-30 | 8 | 30 | 9 | 180 |
| SME9-90-30 | 9 | 30 | 6 | 96 |
| SME10-90-30 | 10 | 30 | 5 | 80 |
