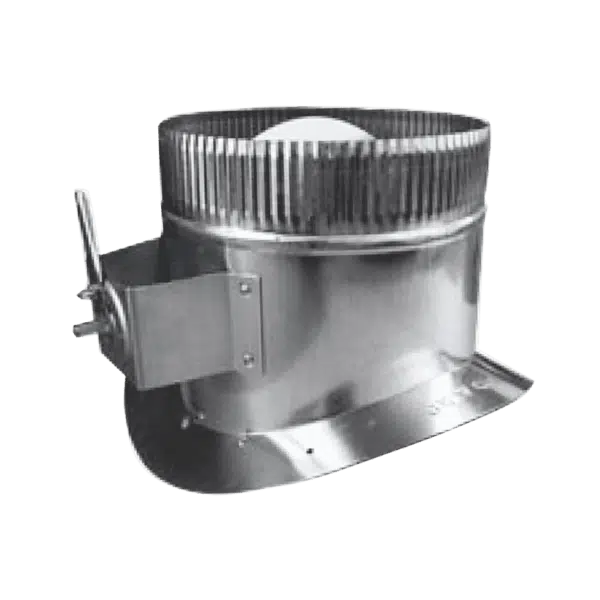

Heavy Duty Saddle Tap With Damper
Heavy Duty Saddle Tap With Damper
Description
Metal Zinc’s Heavy Duty Saddle Tap with damper is used for medium and high pressure applications to aid in air distribution from round trunk lines to round ductwork.
Features
- Meets SMACNA requirements (2005 3rd Edition Section 4.8 Figure 4-6)
- Heavy duty 2” standoff, 3/8’’ aluminum rod and blade for maximum efficiency
- Flange measured to size of round pipe
- Pressure rating +10 water gauge
- Stitch welded seam for added strength and low leakage
Standard Construction
- Manufactured using 26-gauge ASTM A653 material
- ⅛” x 1” two-sided neoprene gasket 1” flange
Optional Construction
- 1” insulation
- Agion (antimicrobial coating)
- AluminumCrimp and bead
- G90 galvanized steel
- Galvanneal (paint grip)
- Insulation guard - scoop
- PCD Stainless steel 304 and 316
- Orange handle
Product specifications
| Metal Zinc Part Number | Size A Inches | Gauge | Row Quantity | Pallet Quantity |
|---|---|---|---|---|
| HI-PR-ST-4-EE | 4 | 26 | 40 | 400 |
| HI-PR-ST-5-EE | 5 | 26 | 40 | 400 |
| HI-PR-ST-6-EE | 6 | 26 | 30 | 360 |
| HI-PR-ST-7-EE | 7 | 26 | 20 | 240 |
| HI-PR-ST-8-EE | 8 | 26 | 20 | 240 |
| HI-PR-ST-9-EE | 9 | 26 | 12 | 144 |
| HI-PR-ST-10-EE | 10 | 26 | 12 | 144 |
| HI-PR-ST-12-EE | 12 | 26 | 12 | 144 |
| HI-PR-ST-14-EE | 14 | 26 | 9 | 90 |
| HI-PR-ST-16-EE | 16 | 26 | 9 | 90 |
| HI-PR-ST-18-EE | 18 | 26 | 6 | 48 |
