Dual Filter Return Air Plenum

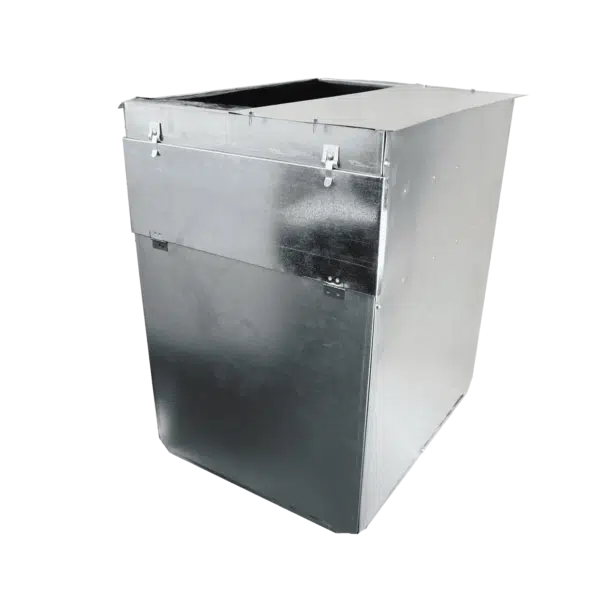

Dual Filter Return Air Plenum

Description

Metal Zinc’s Dual Filter Return Air Plenum one unit replaces separate Media Filter Box, Transition and Return Air Plenum at a significant material and labor cost savings.

Features

  • Space for up to 5” media filter
  • 1” new construction/per-filter
  • Insulated to R4, R6 and R8 specifications or un-insulated
  • Plenty of space for up to 4 return air tracks
  • “Tested Tight” in system leak testing
  • Comes assembled

Standard Construction

  • 28-gauge galvanized steel ASTM A653
  • Blank-off plate for connection to indoor unit
  • Extra strong clasps and hinges on filter section
  • Factory installed gasket on door significantly lowers air leakage.
  • 1” flange in multiple lengths
  • Up to 7 standard sizes for media section

Optional Construction

  • 4” MERV 11 media available with unit
  • Knockdown versions available (boxed or unboxed)
Contact us for more information on this product
Download or print full factsheet on this product

Product specifications

Metal Zinc Part Number Size A x B x C Pallet Quantity
DFP162030-R6-1-116 x 20 x 3012
DFP162530-R6-1-116 x 25 x 3012
DFP202030-R6-1-120 x 20 x 3012
DFP202530-R6-1-120 x 25 x 3012
DFP252030-R6-1-125 x 20 x 3012
DFP322030-R6-1-132 x 20 x 3012
DFP322530-R6-1-132 x 25 x 3012
DFP161535-R6-1-116 x 25 x 3510
DFP202035-R6-1-120 x 20 x 3510
DFP202535-R6-1-120 x 25 x 3510
DFP252035-R6-1-125 x 20 x 3510
DFP162547-R6-1-116 x 25 x 4710
DFP202047-R6-1-120 x 20 x 4710
DFP202547-R6-1-120 x 25 x 4710
DFP252047-R6-1-125 x 20 x 4710
