Double-wall Turning Vane

Double-wall Turning Vane

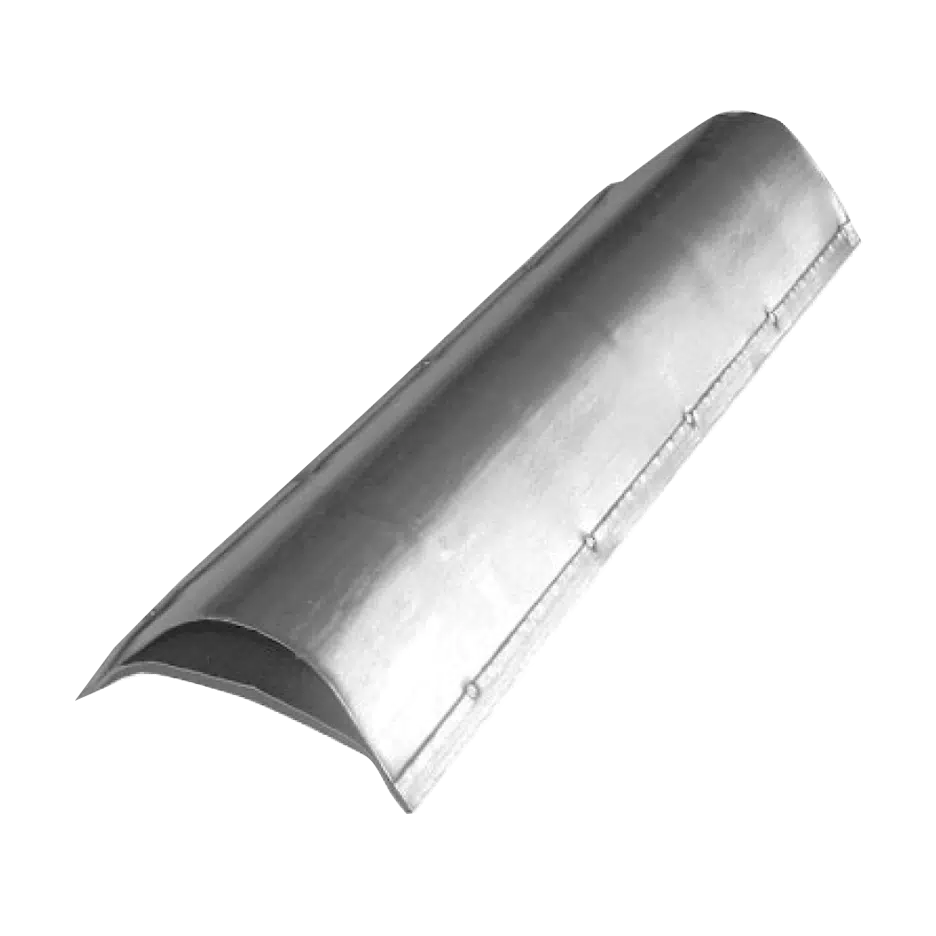

Metal Zinc’s 4” Turning Vane (Double-wall) is used in conjunction with our 4” Vane Rail for directing air flow through a rectangular elbow.


  • Meets SMACNA requirements
  • One dimple per inch
  • Can be used with other rail systems

Standard Construction

  • Roll formed using 24-gauge ASTM A653
  • 10’ length

Optional Construction

  • Agion (antimicrobial coating)
  • Galvanneal (paint grip)
Contact us for more information on this product
Download or print full factsheet on this product

Product specifications

Metal Zinc Part Number Size Inches Gauge Bundle Quantity Pallet Quantity
Contact our sales team
to order this product
Call 281.630.0224
or email us
