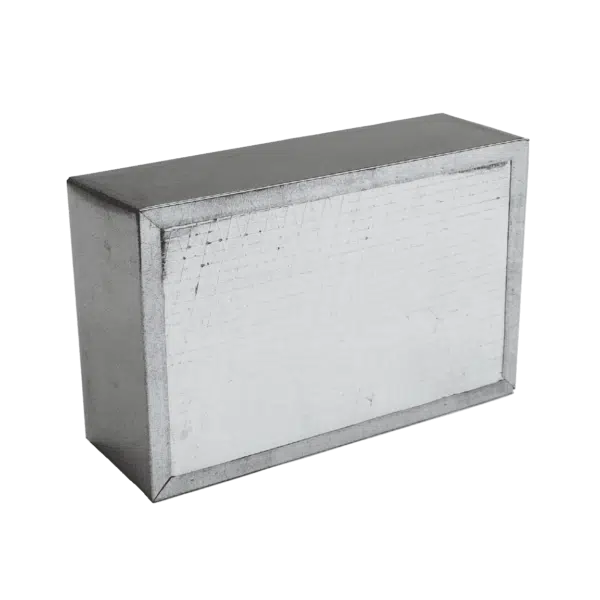

Duct Board Top Supply Box/Boot
Duct Board Top Supply Box/Boot
Description
Metal Zinc’s Duct Board Top Supply Boxes offer the ultimate in flexibility, offering multiple box and collar sizes to fit all supply grills and duct sizes.
Features
- R6 insulation
- Flange fits regular supply grills and multi-shutter dampers
- “Tested Tight” for minimum leakage
- Multiple sizes available
Standard Construction
- Easy cutting of duct board allows any size collar needed
- 30-gauge galvanized steel ASTM A653

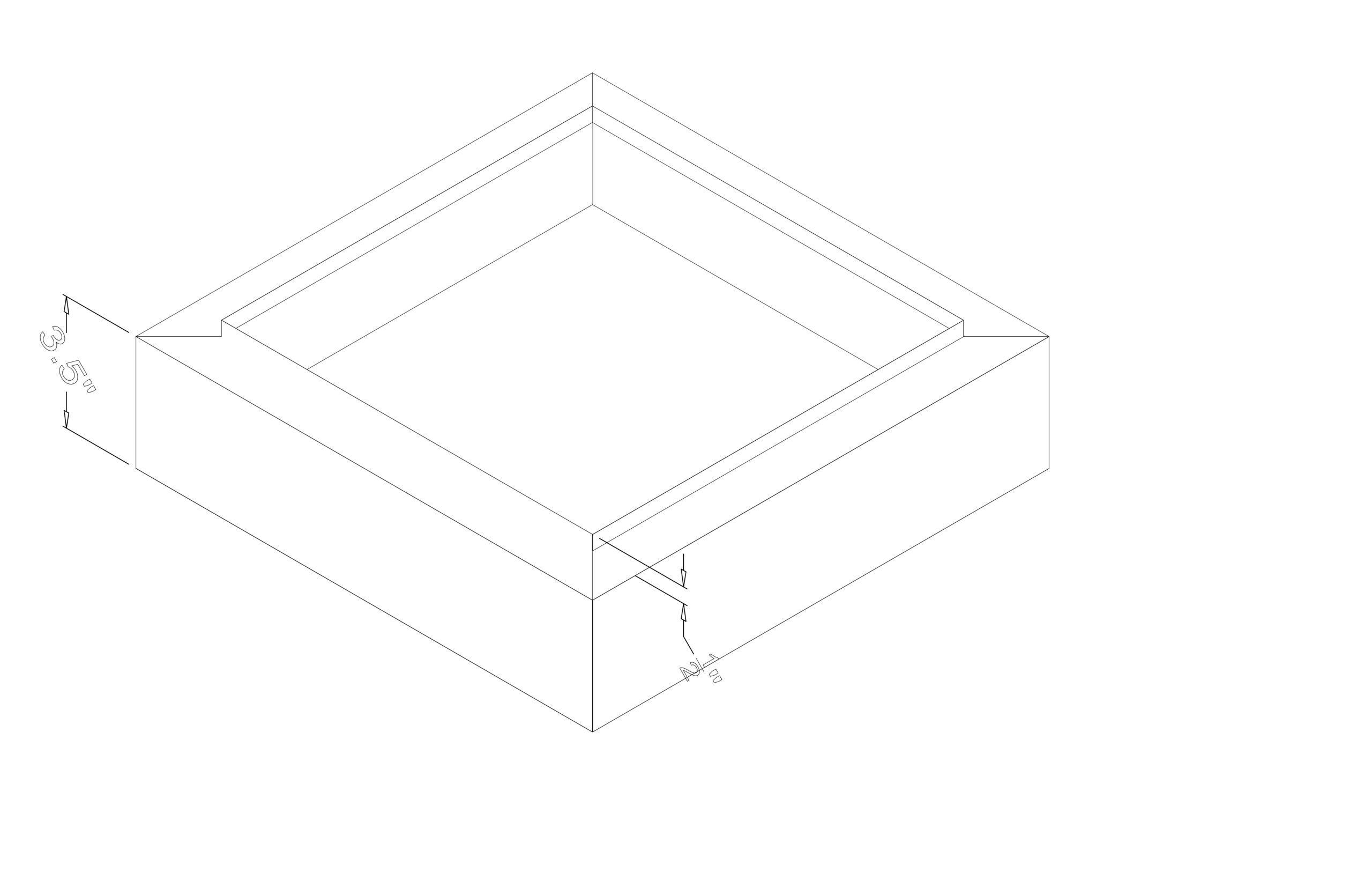

- 3 ½” depth
Optional Construction
- 26-gauge
- Un-insulated box
- Optional dimensions and depths
- R4 and R8 Insulation
Product specifications
| Metal Zinc Part Number | Size | Gauge | Bundle Quantity | Pallet Quantity |
|---|---|---|---|---|
| DBBX66-R6 | 6 x 6 | 30 | 5 | 500 |
| DBBX84-R6 | 8 x 4 | 30 | 5 | 480 |
| DBBX86-R6 | 8 x 6 | 30 | 5 | 400 |
| DBBX88-R6 | 8 x 8 | 30 | 5 | 320 |
| DBBX106-R6 | 10 x 6 | 30 | 5 | 350 |
| DBBX108-R6 | 10 x 8 | 30 | 5 | 280 |
| DBBX1010-R6 | 10 x 10 | 30 | 5 | 210 |
| DBBX126-R6 | 12 x 6 | 30 | 5 | 300 |
| DBBX128-R6 | 12 x 8 | 30 | 5 | 240 |
| DBBX1212-R6 | 12 x 12 | 30 | 5 | 180 |
| DBBX146-R6 | 14 x 6 | 30 | 5 | 250 |
| DBBX148-R6 | 14 x 8 | 30 | 5 | 200 |
| DBBX1414-R6 | 14 x 14 | 30 | 5 | 180 |
| DBBX166-R6 | 16 x 6 | 30 | 5 | 200 |
