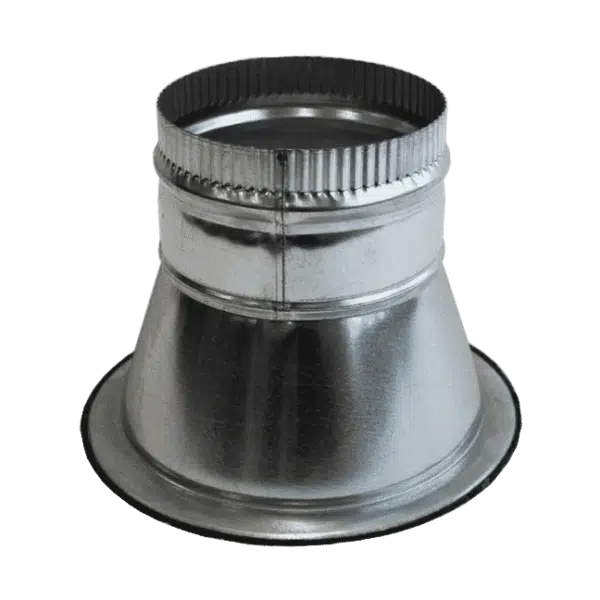

Press On Conical Tap No Damper
Description
Metal Zinc’s Press On Conical Tap with No Volume Damper is used for low and medium pressure applications.
Features
- Welded seams for added strength and low leakage
- Pressure Rating – Designed per SMACNA 3rd Edition
Standard Construction
- Manufactured using G60, 24-gauge ASTM A653 material
- 1” flange
- ⅛” x 1” polyethylene “high density” dye stamped gasket
Optional Construction
- G90 Galvanized Coating
- Spin-in (-SI) version available
Product specifications
| Metal Zinc Part Number | Size A Inches | Row Quantity | Pallet Quantity |
|---|---|---|---|
| SF0775 | 4 | 30 | 210 |
| SF0785 | 6 | 16 | 112 |
| SF0795 | 8 | 12 | 84 |
| SF0805 | 10 | 10 | 70 |
| SF0810 | 12 | 8 | 56 |
| SF0845 | 14 | 5 | 35 |
| SF0823 | 16 | 5 | 35 |
Related products
To learn more about these products or discuss any of your HVAC needs with our team,
Call 832.252.9116 or email [email protected]
